PLEASE NOTE:
UNTIL FURTHER NOTICE MY SHOP IS CLOSED AND NO EMAILS CAN BE RECEIVED OR ANSWERED.
I AM SORRY FOR ANY INCONVENIENCE.













Special: For a limited time deduct 50% off listed
prices
. I will be pleased to quote a special price
for two or more
items dependent on which items..
Prices do not include shipping cost.


Buy it all, any reasonable offer will be considered.
Celebrating of the 43rd year of Optical Tooling and Antique Surveying Instrument Sales and Service.
I am ready to retire!

OK HERE GOES I will accept $5,000.00 CASH ONLY for all items listed below plus some things not listed.

NO SHIPPING, ALL ITEMS MUST BE PICKED UP .  The list is up to date 5/7/2023



  Optical Tooling Categories:     Optical Tooling Instruments & Accessories
Spherical Adapters    Targets    Target Holders   Alignment Telescope Mounts
Adjustable Cup Mounts & Clamps    Scales & accessories     Lateral Slides
Stands, Extensions & Lifts
Other Tools
. All Items are used except those noted otherwise.
ITEM                                                      DESCRIPTION
4157 Alignment Stands, Steel designed after Brunson, 6¾" Diameter column with ¼" wall, Over all height of column is 59"
SOLD 1" thick X 16" diameter bottom plate with 4 mounting holes. Floor to approximate center of cone mounts is 66".
  Cone mounts and mounting plates are included. All Stands must be picked up. I have no means of shipping these.
  No shipping available PHOTO    PHOTO    PHOTO     PHOTO    PHOTO  $2000.00 EACH SOLD

4158 Alignment Telescope Bracket,  Keuffel & Esser, 71-5170
.SOLD   PHOTO   $900.00
.
4162 Collimator, Keuffel & Esser, Straightness Line of Sight, Special Order
.SOLD 2.2500 diameter X 17" long. Contains 4 reticules at 0, 5 feet, 100 feet and
  Infinity target  ca. 1964, excellent condition with box. PHOTO  4000.00
.
4163 T-Slotted Base, Keuffel & Esser, 71-5208, 9" X 18" X 1¼" ,
.SOLD three mounting holes     PHOTO    $500.00
.
4164 T-Slotted Base, Keuffel & Esser, 71-5208, 9" X 18" X 1¼",
..SOLD three mounting holes    PHOTO   $500.00
.
4165 Adjustable Cup Mount, Keuffel & Esser, 71-5140,
.SOLD   PHOTO   $200.00
.

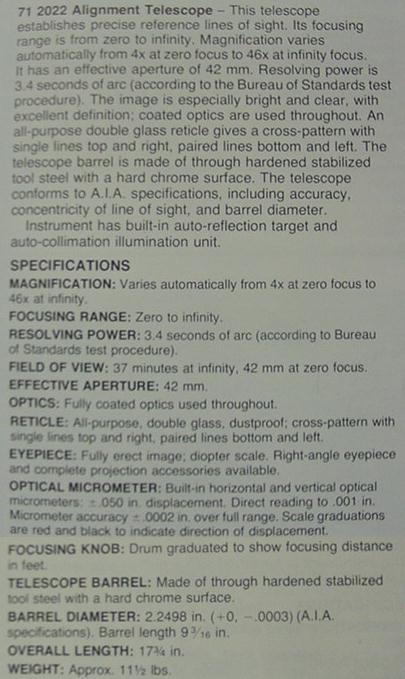

4166 Line of Sight Telescope, Keuffel & Esser, 71-2062,  with built in
SOLD auto reflection target, auto collimation light unit 110V, and case.
  Excellent condition. Calibrated  PHOTO  PHOTO  2000.00
.
4170 Collimator, make unknown, (came from K&E) cross line reticule at infinity.
SOLD (set up as vertical collimator) no light source, in excellent condition.  PHOTO 400.00
.
4173 Spherical Adapter, Keuffel & Esser, 71-5103, 3.500 OD X 2.250 ID,
.SOLD PHOTO   $250.00
.
4174 Spherical Adapter, Keuffel & Esser, 71-5103, 3.500 OD X 2.250 ID,
. PHOTO   $250.00
.
4175 Collimator, make unknown, (came from K&E, maybe by Davidson Optronics)
SOLD bi-filer reticule at infinity. 2.000 diameter barrel X 12 ½ inches, straight line eyepiece,
  no light source. In excellent condition.   PHOTO    1000.00
.

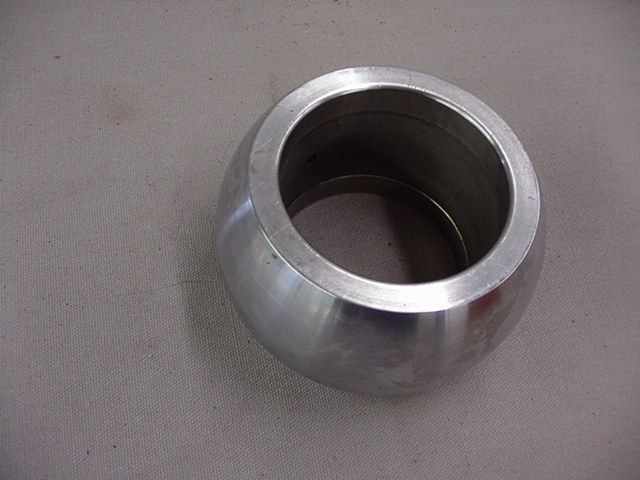

4176 Spherical Adapter, Taylor & Hobson ?, 3.500 OD X 2.250 ID,
. Hard Chromed,  PHOTO    250.00
.
4177 Spherical Adapter, Keuffel & Esser, 71-5103, 3.500 OD X 2.250 ID,
.  PHOTO     250.00
.
4178 Extension Cup Mount, Long,  Keuffel & Esser, 71-5175,
. for use with 71-5050 for Optical Square 71-2410 mounted
. on Alignment Telescope.  PHOTO    175.00
.
4180 Clamp for Cup Mount, Keuffel & Esser, 71-5142, for use
with 71-5140 Adjustable Cup Mount.  PHOTO    200.00
.
4181 Collimator, Askania, bi-filer reticule, no light,  no mount .   PHOTO  300.00
..SOLD
4182 Collimator, Askania, cross line reticule, no light,  no mount .   PHOTO  300.00
..SOLD
4184 V-Block, Cone type, Keuffel & Esser, 71-5192,
..SOLD with out cones. one broken cone clamp, usable as is. PHOTO    150.00
.
4185 V-Block, Cone type, Keuffel & Esser, 71-5192, with one cone,
..SOLD one broken cone clamp, usable as is.   PHOTO   275.00
.
.
4189 Mirror, Keuffel & Esser, model 71-1135, threads on to jig transit telescope axle ends.
  mirror is 1 13/16" X 4 13/16", with cap, it is in EXCELLENT ++ CONDITION,
  PHOTO  PHOTO  $300.00
.
4191 Optical Micrometer, Keuffel & Esser, 71-1110 for use with Jig Transit
.SOLD 1.468 inside diameter, Near new condition   PHOTO     475.00
.
4192 Alignment Collimator, Keuffel & Esser, 9092-4, ( same as 71-4010),
.SOLD 2.2498 diameter X 12" long. Infinity target is graduated every 30
seconds with a total of 18  minutes of arc in four directions from zero.
a paired-line target is centered on the objective lens.
. Excellent condition, with oak box   PHOTO    1950.00
.
4193 Alignment Collimator, Keuffel & Esser, 9092-4, ( same as 71-4010),
.SOLD 2.2498 diameter X 12" long. Infinity target is graduated every 30
seconds with a total of 18  minutes of arc in four directions from zero.
a paired-line target is centered on the objective lens.
 Excellent condition,  with oak box   PHOTO    1950.00
.

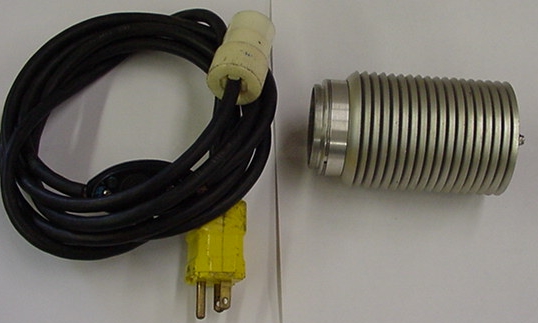

4194 Lamp Housing, Keuffel & Esser, 71-5520,  for 71-4010 Collimator,
.SOLD 110V, also fits spherical adapters.   PHOTO    200.00
.
4195 Co-Ordinate Motion Base, Brunson, model 273-5, has four
.SOLD threaded holes on bottom surface, no mount,    PHOTO    400.00
.
4207 Target Micrometer Centering Holder, Keuffel & Esser,
. range of adjustment 5¼" to 5¾" Square PHOTO   600.00
.

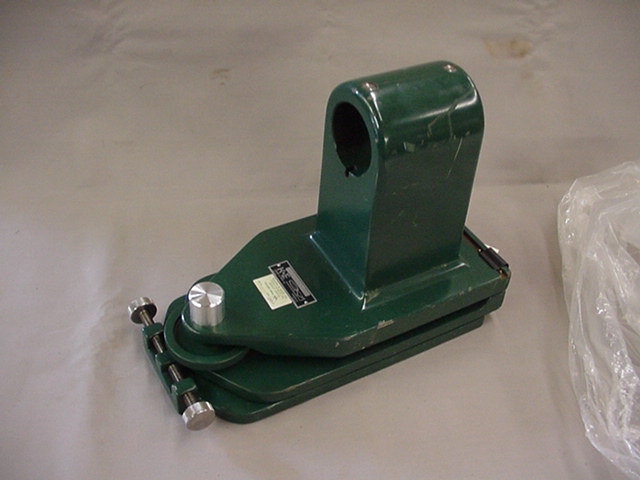

4214 Surface Plate Mount,  Keuffel & Esser, 71-4325, for use
. with 2.250 diameter Alignment Telescopes and collimators
. on flat surfaces. Very heavy  PHOTO    1000.00
.
4217 Extension Arm, Keuffel & Esser, 71-5175, for use
. with 71-5170 Alignment Telescope Bracket, and
. Optical Square 71-2410, NEW,   PHOTO    130.00
.
4218 Alignment Collimator, Keuffel & Esser, 71-4010,
..SOLD 2.2498 diameter X 12" long. Infinity target is graduated every 30
. seconds with a total of 18  minutes of arc in four directions from zero.
a paired-line target is centered on the objective lens.
 Excellent condition, PHOTO    1850.00
.
4220 Alignment Collimator, Keuffel & Esser, 71-4010,
..SOLD 2.2498 diameter X 12" long. Infinity target is graduated every 30
. seconds with a total of 18  minutes of arc in four directions from zero.
a paired-line target is centered on the objective lens.
Excellent condition,  PHOTO    1850.00
.
4227 Spherical Adapter, same as K&E 71-5103, 3.500 OD X 2.250 ID,
SOLD Black oxide finish, Excellent condition.  PHOTO     250.00
.
4230 Line of Sight Telescope, Keuffel & Esser, 71-2062, with built in
.SOLD auto reflection target and auto collimation unit 110V, and case.
. Calibrated, Excellent condition.  PHOTO  2000.00
.
4233 Line of Sight Telescope, Zeiss, barrel diameter 56mm X 131mm
.SOLD long. In Excellent condition   PHOTO    1000.00
.
4239 Target, Cubic Precision (K&E) 71-6160, plastic, Bulls Eye type
SOLD 2.250dia. Good face, identification numbers engraved
.  on back side  PHOTO  PHOTO     30.00
.
4255 Target, Nylon, Keuffel & Esser, 71-6160, 2.250 diameter,
. Bullseye Pattern  PHOTO   60.00
.
4260 Target, Nylon, Brunson, model 714, 2.250 diameter,
.SOLD  Bi-filar  PHOTO    60.00
.
4261 Target, Nylon, Brunson, model 707-60, 2.250 diameter,
.SOLD Bi-filar .060 PHOTO   60.00
.
4269 Target, Glass, Taylor & Hobson, model 112/, centering accuracy .00025
.  outside diameter 1.4996 diameter PHOTO   200.00
.
4270 Target, Glass,  Taylor & Hobson, model 112/, centering accuracy .00025
. 1.4999 diameter PHOTO   200.00
.
4271 Target, Glass,  Taylor & Hobson, model 112/, centering accuracy .00025
. 1.4999 diameter PHOTO   200.00
.
4273 Cup Mount Clamp, Keuffel & Esser, 71-5142,  for use
.SOLD with 71-5140 Adjustable Cup Mount.   PHOTO   200.00
.
4276 Spherical Adapter, Taylor & Hobson, model 112/376
SOLD Collet type 3.500 OD X 2.250 ID,  PHOTO  500.00
.
4277 Spherical Adapter,  Taylor & Hobson, model 112/376
SOLD Collet type 3.500 OD X 2.250 ID,  PHOTO  500.00
.
4278 Spherical Adapter, Taylor & Hobson, model 112/376
Collet type  3.500 OD X 2.250 ID,  PHOTO   500.00
.

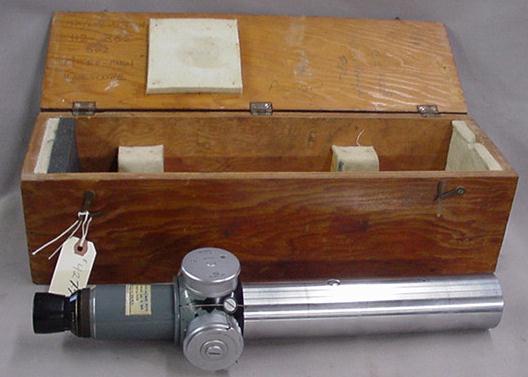

4279 Alignment Telescope, Taylor & Hobson, model 112/365/502,
  Eyepiece threads damaged, but working ok, with homemade box,
  Excellent condition otherwise PHOTO  2000.00
.
4283 Target, Line of Sight, Taylor & Hobson, 2.250 diameter
. with back light 110V   PHOTO    1000.00
.
4285 Shoulder Ring, Taylor & Hobson, 112/465 used to
. center targets in Collet type Spherical Adapters
. and to hold back light.   PHOTO     200.00
.
4292 Cup Mount, Taylor & Hobson, 112/471,
.  3½ X 8 threads   PHOTO   300.00
.
4293 Cup Mount, Taylor & Hobson, 112/472,  3½ X 8 threads,
shown together in photo with #4294 below. ..PHOTO  300.00
.
NOTE: Above and below items # 4293 and #4294
. combined are priced at: $550.00  PHOTO
.
4294 Sphere Clamp, Taylor & Hobson, 112/472, shown together
.  in photo with#4293 above. ..PHOTO    300.00
.
4295 Alignment Telescope Mounting Bracket, Taylor & Hobson,
. 112/656 base with 112/645 Adjusting Bracket.   PHOTO  1000.00
.
4296 Alignment Telescope Mounting Bracket, Taylor & Hobson,
. 112/468 base with 112/649 Adjusting Bracket.   PHOTO   1000.00
.
4298 Target Holder kit, Keuffel & Esser, 9099-81, Spider  type, 2.250 dia.
. For bore sizes 5.560 to 20 inches.  PHOTO    700.00
.
4299 Target Holder kit, Keuffel & Esser, 9099-81, Spider  type, 2.250 dia.
. For bore sizes 5.560 to 20 inches.  PHOTO    700.00
.
4300 Target Holder kit, Keuffel & Esser, 9099-81, Spider  type, 2.250 dia.
. For bore sizes 5.560 to 20 inches.  PHOTO    700.00
.
4302 Target Holder, Keuffel & Esser, holder only,
. Spider  type, 2.250 dia. PHOTO  100.00
.
4303 Rods Target Holder, three  23¼",  Keuffel & Esser,
..SOLD  for use with above. PHOTO   100.00
.
4304 Target Holder, #5 Morse Taper,  fits 1.500 diameter targets,
.  steel   PHOTO   150.00
.
4305 Target Holder, #6 Morse Taper,  fits 2.250 diameter targets,
.  steel  PHOTO    150.00
.
4308 Target Holder Adjustable, Taylor Hobson, model 112/467,
SOLD for 2 1/4 inch targets or mirror, rotating ground base with
two locating pins, and threaded for target illuminator.
Centers target at nominal height of 2.930 inches from base
to center of target. Range of vertical and horizontal adjustment
is .125 inches.  PHOTO    PHOTO   PHOTO   PHOTO    500.00
.
4309 Co-ordination Bushing, Boeing, OT-2500-269,
.  3.500 OD X 2.250 ID. PHOTO    100.00
.
4310 Co-ordination Bushing, Boeing, OT-2500-269,
.  3.500 OD X 2.250 ID. PHOTO   100.00
.
4312 Target Holder kit, Keuffel & Esser, 9099-81, Spider  type, 2.250 dia.
. For bore sizes 5.560 to 20 inches.  PHOTO    700.00
.
4314 Target Holder kit, Keuffel & Esser, 9099-81,  Spider  type, 2.250 dia.
. For bore sizes 5.560 to 20 inches.  PHOTO   700.00
.
4318 Spherical Adapter,  Taylor & Hobson, model 112/376 Collet type
3.500 OD X 2.250 ID,  PHOTO     500.00
.
4322 Lateral Adjuster, Brunson, .001 graduated dial, 115mm total travel,
.SOLD dovetail mount for Brunson stands, etc., 3½" X 8 threads.
. Good condition.  PHOTO   PHOTO  350.00
.
4324 Sine Plate, 2¼ thick X 6½ " X 27"long,  20"  center distance of rolls,
.  two 3/8" T-Slots spaced 4¼" on center, over 100#   PHOTO  600.00
.
4325 Spherical Adapter Threaded Collet Clamping Ring, will fit K&E,
and  Taylor Hobson Collet type Spherical Adapters.  PHOTO    50.00
.
4326 Shoulder Ring, Taylor & Hobson, 112/375, used to
center targets in Collet type Spherical Adapters and
to hold back light.   PHOTO   200.00
..
4329 Collimator,  Brunson, tube mounted  3½" X 8 threads,
..SOLD with lateral adjuster. PHOTO   800.00
.
4333 Keuffel & Esser support for spider target holder   PHOTO   20.00
.

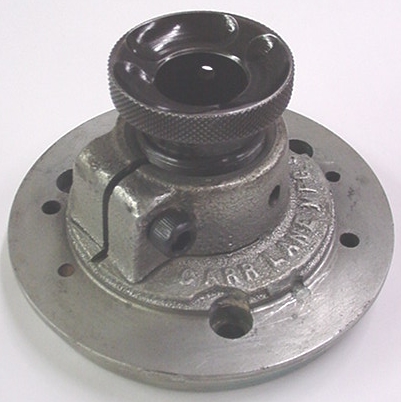

4339 Cup Mount, adjustable,  Carr-Lane, Same
..SOLD as K & E 71-5140.   PHOTO   200.00
.
4340 Cup Mount, adjustable,  Carr-Lane, Same
..SOLD as K & E 71-5140.   PHOTO   200.00
.
4341 Cup Mount, adjustable,  Carr-Lane, Same
..SOLD as K & E 71-5140.   PHOTO  200.00
.
4346 Cup Mount Clamp, Keuffel & Esser, 71-5142,  for use
.SOLD with 71-5140 Adjustable Cup Mount.    PHOTO  200.00
.
4360 Spherical Adapter, same as K&E 71-5103, 3.500 OD X 2.250 ID,
Black oxide finish, Excellent condition.  PHOTO   250.00
.
4361 Alignment Telescope Bracket,  Keuffel & Esser,
.SOLD 71-5170   PHOTO   900.00
.
4366 Cathetometer Telescope,  Hilger Watts TA18-1    PHOTO   200.00
.
4372 V-Block, Cone type, Keuffel & Esser,9099-59B,
..SOLD same as 71-5192,  PHOTO    375.00
.
4374 Spherical Adapter, unknown maker, 3.500 OD X 2.250 ID,.
.  hard chromed  PHOTO     200.00
.
.
4377 Alignment Telescope Mounting Bracket,
.SOLD Keuffel & Esser, 71-5170 PHOTO    900.00
.
4380 Cup Mount, Taylor & Hobson, 112/472,    PHOTO    200.00
.
4381 Spherical Adapter Threaded Collet Clamping Ring, will fit K&E,
and  Taylor Hobson Collet type Spherical Adapters.  PHOTO    50.00
.
4382 Spherical Adaptor, K & E , 71-5103.
. 3.500 OD X 2.250 ID,  PHOTO     200.00
.
4383 Spherical Adaptor, K & E , 71-5103.
. 3.500 OD X 2.250 ID,  PHOTO    200.00
.
4384 Spherical Adapter,  Make unknown , Collet type, same as K&E
Hard chromed, 3.500 OD X 2.250 ID,  PHOTO    500.00
.
4385 Spherical Adapter, Make unknown,  model 112/376 Collet type
Hard chromed, 3.500 OD X 2.250 ID,  PHOTO    500.00
.
4386 Spherical Adapter,  Taylor & Hobson, model 112/376 Collet type
.SOLD 3.500 OD X 2.250 ID,  PHOTO     500.00
.
4387 Spherical Adapter,  Taylor & Hobson, model 112/376 Collet type
.SOLD 3.500 OD X 2.250 ID,  PHOTO    500.00
.
4391 Shoulder Ring, Taylor & Hobson ?, same as 112/375
.  used to center targets in Spherical Adapters and to
. hold back light.   PHOTO    200.00
.
4392 Shoulder Ring, Taylor & Hobson, 112/375 used to center targets
.SOLD in Spherical Adapters and to hold back light.   PHOTO  200.00
.
4397 Lamp Housing, Keuffel & Esser, 71-5520, for use with
..SOLD 71-4010 Collimator, 110V  PHOTO   200.00
.
4403 Spherical Adapter, Keuffel & Esser 71-5103, 3.500 OD X 2.250 ID,
.SOLD Black oxide finish, Excellent condition.  PHOTO    250.00
.
4404 Spherical Adapter, same as K&E 71-5103, 3.500 OD X 2.250 ID,
.SOLD Black oxide finish, Excellent condition.  PHOTO     250.00
.
4406 Alignment Telescope Bracket,  Keuffel & Esser,
.SOLD 71-5170   PHOTO    900.00
.
4407 Alignment Telescope Bracket,  Keuffel & Esser,
.SOLD  71-5170   PHOTO    900.00
.
4409 Alignment Telescope Bracket,  Keuffel & Esser,
.SOLD 71-5170   PHOTO    900.00
.
4414 Alignment Telescope Bracket,  Keuffel & Esser,
.SOLD 71-5170   PHOTO  900.00
.
4415 Alignment Telescope Bracket,  Keuffel & Esser,
.SOLD 71-5170   PHOTO  900.00
.
4416 Alignment Telescope Bracket,  Keuffel & Esser,
.SOLD 71-5170   PHOTO  900.00
.
4418 Alignment Telescope Bracket Base only,  Keuffel & Esser,
  for 71-5170  PHOTO  350.00
.
4419 Cup Mount Clamp, Keuffel & Esser, 71-5142, for use
.SOLD with 71-5140 Adjustable Cup Mount.   PHOTO  200.00
.
4422 Cup Mount Clamp, Keuffel & Esser, 71-5142, for use
.SOLD  with 71-5140 Adjustable Cup Mount.   PHOTO  200.00
.
4423 Cup Mount Clamp, Keuffel & Esser, 71-5142, for use
SOLD  with 71-5140 Adjustable Cup Mount.   PHOTO  200.00
.
4424 Cup Mount Clamp, Keuffel & Esser, 71-5142, for use
SOLD  with 71-5140 Adjustable Cup Mount.   PHOTO  200.00
.
4425 Cup Mount Clamp, Keuffel & Esser, 71-5142, for use
 with 71-5140 Adjustable Cup Mount.   PHOTO  200.00
.
.
.
.        The following item numbers are from my list of  Instruments for Sale
.      These may be of interest as they are related to use in Optical Alignment
.                                          or tools for use in the shop.
.  Tilting levels - 4002, 4122
. Trivets - 3941, 3956  Collimators - 3944, 4040, 4095
. Level Trier - 4056, 4057 Cathetometer - 4111
.
.
  Shop hours are 9:00 AM to 5:30 PM EST Monday through Thursday
.  Email to:  Robert Parrish   robert@antiquesurveying.com
.


HOME   ORDER   DIRECTORY   INSTRUMENTS for SALE
